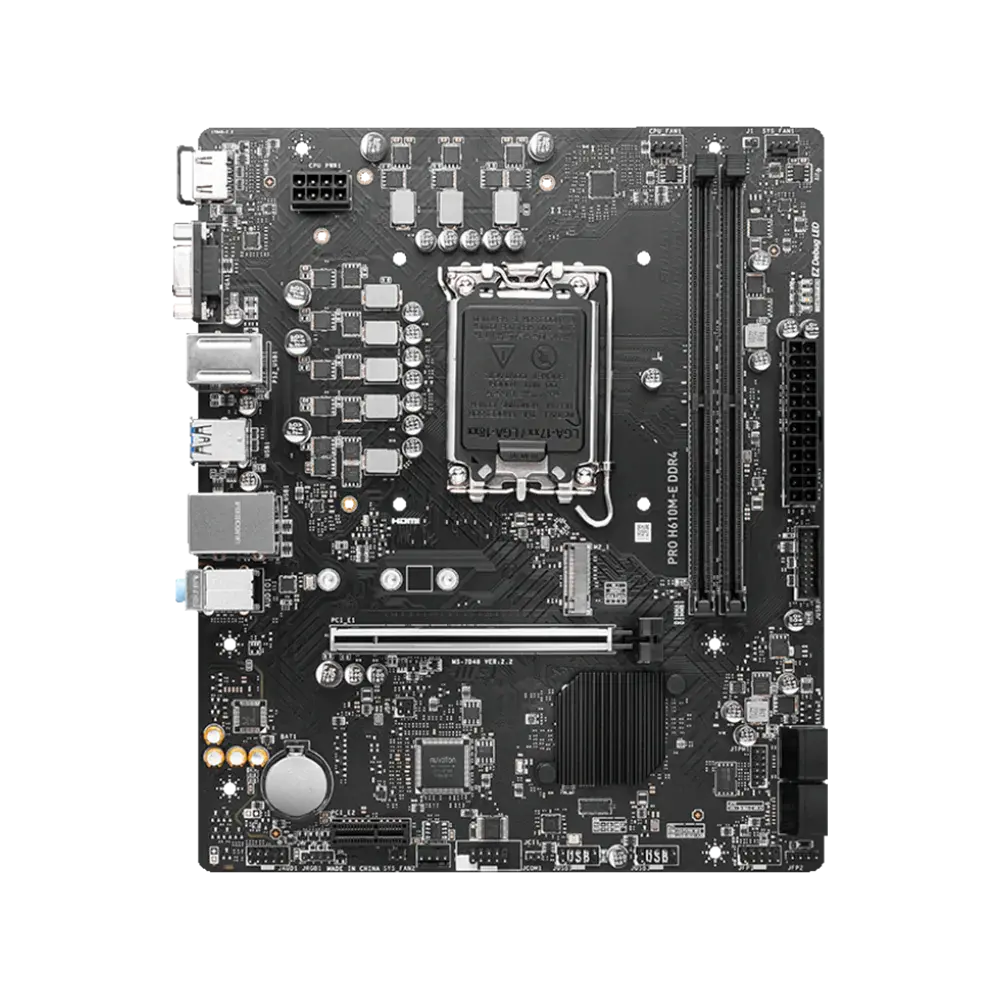

MSI PRO H610M-E DDR4 mATX Motherboard — LGA1700 | Best price in BD
Original price was: 10,500.00৳ .9,800.00৳ Current price is: 9,800.00৳ .
The MSI H610M motherboard features Intel® H610 chipset, supporting Intel® Core™ 14th/13th/12th Gen processors with LGA1700 socket, DDR4 memory up to 64GB, PCIe 4.0, M.2 and SATA storage, 4K HDMI, and high-definition audio—ideal for stable, budget-friendly PC builds.
Model: MSI PRO H610M-E DDR4.
Form Factor: Micro-ATX (mATX).
Chipset: Intel H610.
CPU Socket: LGA 1700 — supports Intel 12th/13th/14th Gen, Pentium Gold & Celeron.
Memory: 2× DIMM, DDR4 up to 3200 (max 64GB), dual-channel.
Expansion: 1× PCIe x16 (PCIe 4.0 with supported CPU), 1× PCIe x1.
Storage: 1× M.2 (NVMe PCIe Gen3 x4), 4× SATA 6Gb/s.
USB: USB 3.2 Gen1 ports (rear & header) + multiple USB 2.0 headers.
Video outputs: 1× HDMI (4K@30Hz), 1× VGA.
LAN: 1× Realtek 1Gb Ethernet.
Audio: Realtek ALC897 Codec, 7.1 HD Audio (via headers/IO).
MSI PRO H610M-E Motherboard Specifications
| Category | Details | ||
| Processor | • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors • Processor socket LGA1700 |
||
| Chipset | Intel® H610 Chipset | ||
| Memory | • 2x DDR4 memory slots, support up to 64GB • Supports 1R 2133/ 2666/ 3200 MHz (JEDEC & POR) • Supports Dual-Channel mode • Supports non-ECC, un-buffered memory |
||
| Expansion Slot | • 1x PCIe x16 slot (From CPU) – PCIe 4.0 x16 • 1x PCIe x1 slot (From H610 chipset) – PCIe 3.0 x1 |
||
| Onboard Graphics | • 1x HDMI™ 1.4 with HDR port – max 4K 30Hz • 1x VGA port – max 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
||
| SATA Ports | 4x SATA 6Gb/s ports (From H610 chipset) | ||
| M.2 SSD Slot | • 1x M.2 slot (Key M) (from H610 chipset) • Supports PCIe 3.0 x4 & SATA 6Gb/s • Supports 2242/ 2260/ 2280 devices |
||
| Audio | Realtek® ALC897 Codec – 7.1-Channel High-Definition Audio | ||
| LAN | Realtek® RTL8111H 1Gbps LAN controller | ||
| Power Connectors | • 1x 24-pin ATX main power connector • 1x 8-pin +12V power connector |
||
| Internal USB Connectors | • 1x USB 3.2 Gen 1 5Gbps connector – 2 ports • 2x USB 2.0 Type-A connectors – 4 ports |
||
| Fan Connectors | • 1x 4-pin CPU fan connector • 2x 4-pin system fan connectors |
||
| System Connectors | • 1x Front panel audio connector • 2x System panel connectors • 1x Chassis Intrusion connector • 1x TPM module connector • 1x Serial port connector |
||
| Jumpers | 1x Clear CMOS jumper | ||
| LED Features | • 1x 4-pin RGB LED connector • 4x EZ Debug LED |
||
| Back Panel Ports | 1. HDMI™ 2. VGA 3. Keyboard / Mouse 4. USB 3.2 Gen 1 5Gbps Type-A 5. LAN port 6. Audio connector 7. USB 2.0 |
||
| Dimensions | • M-ATX Form Factor • 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
||
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit | ||
| Products Warranty |
|
The MSI PRO H610M-E DDR4 is a business-focused Micro-ATX motherboard for value-conscious builders in Bangladesh who need a reliable upgrade path. Built on the Intel H610 chipset and LGA1700 socket, it supports the latest Intel 12th/13th/14th Gen CPUs and offers a clean feature set: dual DDR4 DIMMs (up to 64GB), a PCIe x16 slot for modern GPUs, a fast M.2 NVMe slot for OS/boot drives plus four SATA 6Gb/s ports for bulk storage. Compact and efficient, the PRO H610M-E includes both HDMI and VGA outputs for legacy and modern displays, 1 Gigabit LAN for office networks, and Realtek HD audio—making it an ideal choice for home, office and budget gaming systems. With MSI’s reliable build and a compact mATX layout, you can build a power-efficient PC that’s easy to assemble and service. Buy from Tech Moon BD in Bangladesh to ensure warranty and support.
Questions & Answers :
- Q: Which Intel CPUs does this board support?
A: LGA1700 socket — supports Intel 12th, 13th and 14th Gen Core, Pentium Gold and Celeron series (check BIOS for very new CPUs). - Q: Does it take DDR5?
A: No — this DDR4 variant supports DDR4 only (2 DIMMs, max 64GB). (There is a separate DDR5 SKU in the PRO H610M family.) - Q: Is there an M.2 NVMe slot?
A: Yes — a single M.2 slot supporting PCIe NVMe (Gen3 x4) for fast boot and game drives. - Q: Can I use a modern GPU?
A: Yes — it has a full-length PCIe x16 slot (works with modern GPUs; check case clearance and PSU). - Q: Will my old monitor work?
A: Yes — it includes HDMI and VGA outputs for both modern and legacy displays. - Q: Does it support RAID?
A: H610 chipset typically supports basic SATA functions, but full RAID arrays depend on BIOS/driver support — check MSI support & manual. - Q: How many SATA ports?
A: Four SATA 6Gb/s ports for HDDs/SSDs. - Q: Where can I get BIOS updates?
A: MSI’s official support page has BIOS, drivers and manual downloads — always use the exact model page. - Q: Is this good for an office PC?
A: Yes — compact mATX, legacy I/O and reliable LAN/audio make it ideal for office and light workstation builds.
