Maxsun Terminator Z790M D5 WIFI DDR5 Micro-ATX Motherboard – Intel 12th/13th Gen Gaming & Performance | Tech Moon BD
Original price was: 26,500.00৳ .24,800.00৳ Current price is: 24,800.00৳ .
Key Features:
- Supports Intel Z790 Chipset – 12th & 13th Gen CPUs
- DDR5 Memory Support up to 192 GB & XMP (7000 MHz+ OC)
- Micro-ATX Form Factor (~245 × 245 mm)
- 5 × PCIe 4.0 x4 M.2 Slots for NVMe Storage
- Dual 20 Gbps USB-C (Front & Rear)
- Intel Wi-Fi 6E & Bluetooth 5.3 Wireless
- Realtek 2.5G LAN & 7.1 HD Audio
- PCIe 5.0 x16 Graphics Slot & RAID Support

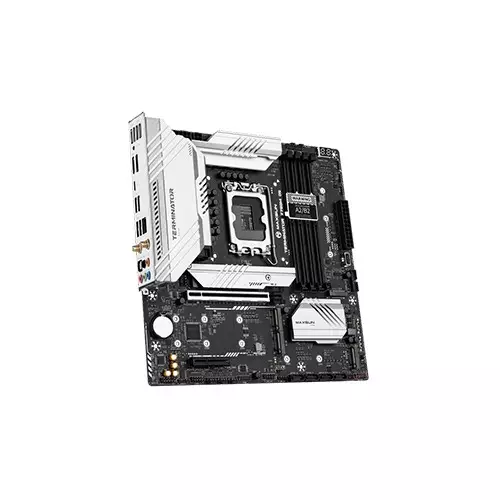

The Maxsun Terminator Z790M D5 WIFI Motherboard is a high-performance DDR5 Micro-ATX motherboard designed for Intel 12th and 13th Gen processors (Core, Pentium, Celeron) on the LGA1700 socket. Featuring DMR5 memory support, multiple NVMe storage options, Wi-Fi 6E wireless, and fast LAN, it’s a great choice for gamers, creators, and performance PC builders in Bangladesh. Available at Tech Moon BD with warranty and reliable delivery.
Specification:
| Feature | Details |
| Brand | Maxsun |
| Model | Terminator Z790M D5 WIFI |
| Chipset | Intel Z790 |
| CPU Support | Intel 12th & 13th Gen Core / Pentium Gold / Celeron (LGA1700) |
| Form Factor | Micro-ATX (~245 × 245 mm) |
| Memory | 4 × DDR5 DIMM, up to 192 GB, XMP 7000 MHz+ (OC) |
| Graphics Output | 1 × HDMI, 1 × DisplayPort |
| Expansion | 1 × PCIe 5.0 x16, 1 × PCIe 3.0 x4 |
| Storage | 5 × M.2 PCIe 4.0 x4, 4 × SATA 6 Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |

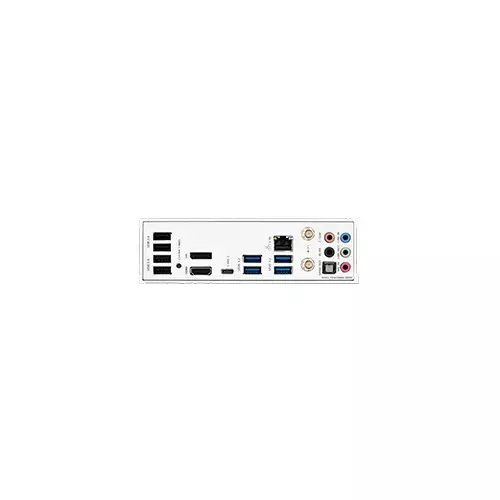

| USB | Front + Rear USB, incl. USB3.2 Gen2x2 Type-C (20 Gbps) |
| LAN | Realtek RTL8125B 2.5G ® |
| Wireless | Intel Wi-Fi 6E AX211 + Bluetooth 5.3 |
| Audio | Realtek ALC897 – 7.1 HD Audio + S/PDIF |
| Debug/Tools | Digital Debug LED + CLR_CMOS button |
| OS Support | Windows 11 & Windows 10 (64-bit) |
Description:
The Maxsun Terminator Z790M D5 WIFI DDR5 Micro-ATX Motherboard is a robust and versatile board tailored for Intel 12th and 13th Gen processors (LGA1700), making it ideal for gaming, multitasking, and high-performance builds in Bangladesh. Built around the Intel Z790 chipset, this motherboard supports the newest DDR5 memory with XMP profiles up to 7000 MHz+ (OC) across four DIMM slots, enabling smooth performance for games and demanding applications.
Storage flexibility is a standout, with five PCIe 4.0 x4 M.2 slots — all supporting NVMe SSDs — and four SATA 6 Gb/s ports for traditional HDDs or SATA SSDs, plus RAID 0/1/5/10 support for advanced storage setups.
Connectivity is modern and fast: the board includes dual USB 3.2 Gen2x2 Type-C ports on front and rear panels (up to 20 Gbps), multiple USB Type-A ports, Realtek 2.5G wired LAN, and Intel Wi-Fi 6E with Bluetooth 5.3 for high-speed wireless networking — perfect for online gaming, streaming, and file transfers.
For graphics output when using CPUs with integrated graphics, you get HDMI and DisplayPort support. The board also features digital debug LEDs and a one-button CLR_CMOS reset for easier troubleshooting and setup. With PCIe 5.0 immunity and advanced power delivery, the Maxsun Terminator Z790M D5 WIFI balances performance with expandability in a compact Micro-ATX form factor.
Get the Maxsun Terminator Z790M D5 WIFI DDR5 Motherboard at Tech Moon BD — perfect for building a powerful Intel system with high-speed memory, storage, and networking.
Question & Answer (Q&A):
Q1: Which CPUs are supported?
Supports Intel 12th & 13th Gen Core, Pentium Gold, and Celeron processors (LGA1700).
Q2: How much RAM can it support?
Up to 192 GB DDR5 with XMP overclocking support.
Q3: Does it have Wi-Fi?
Yes — built-in Intel Wi-Fi 6E with Bluetooth 5.3.
Q4: How many M.2 slots are there?
It has five M.2 PCIe 4.0 x4 slots for NVMe SSDs.
Q5: Is this motherboard good for gaming builds?
Yes — with DDR5, PCIe 5.0 graphics slot, fast networking, and multiple storage options, it’s great for gaming and performance PCs.
